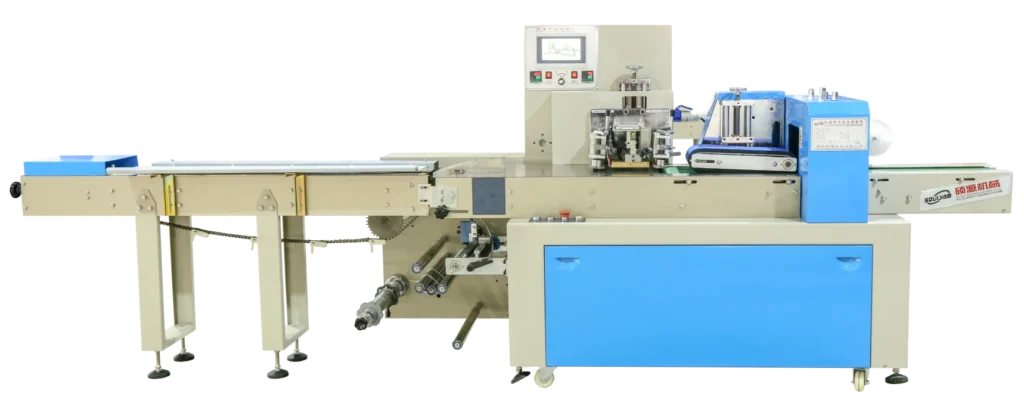

Horizontal Packaging Machine Overall Solution

This full-servo high-speed horizontal packaging solution targets automatic packaging demands in food, daily necessities, hardware, pharmaceutical, cold chain and other industries. It solves core traditional problems such as high labor cost, defective sealing, cutting deviation, cumbersome model change, unstable output and material waste. Adopting multi-axis servo synchronous control, photoelectric intelligent tracking and error-proof algorithms, the equipment realizes full-process automatic operation including feeding, film wrapping, sealing, cutting, coding and discharging. It supports flexible production of multi-specification products, effectively improving line efficiency and reducing production and maintenance costs.

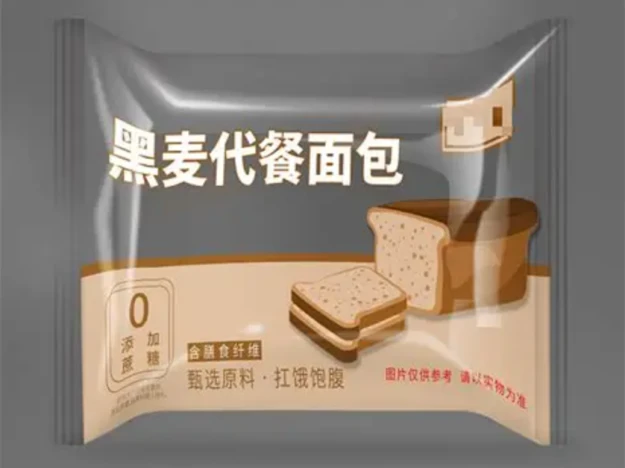

Application Scenarios: Continuous horizontal sealing packaging for regular solid products such as blocks, strips and tray-type goods (bread, biscuits, candy, medicine, masks, hardware accessories, daily necessities, frozen food, etc.).

1. Customer Pain Points and Demand Analysis

Combined with actual industrial mass production scenarios, traditional horizontal packaging has four major pain points: high labor dependence, low packaging yield, low efficiency of multi-SKU switching, poor stability in high-speed operation, and untraceable production data, which cannot meet modern lean production standards.

High labor dependence: Manual film wrapping, sorting and counting lead to high labor costs, limited shift production capacity, and poor packaging consistency caused by human errors.
High defective packaging rate: Traditional mechanical speed regulation structures easily cause film length deviation, wrinkled and leaking seals, cutting offset and product extrusion damage, keeping the defective rate at a high level.
Low product switching efficiency: Traditional machines depend on mechanical gear adjustment. Multi-SKU switching is time-consuming and requires professional debugging, which cannot adapt to small-batch and multi-variety orders.
Unstable equipment operation: High-speed operation is prone to faults such as film deviation, film breakage, material jamming, empty packaging and mis-cutting, resulting in frequent shutdown debugging and greatly reduced equipment utilization rate.
Untraceable production data: Without automatic output statistics, fault records and parameter storage functions, production data is scattered and fails to meet the standards of lean production and quality traceability.

Based on the above pain points, the core customer requirements are to realize full-automatic continuous packaging, ensure stable high-speed production, support one-click fast model switching, reduce defective rate, simplify operation and maintenance, and realize seamless connection with automatic production lines and quality traceability systems.

2. Solution Design

2.1 Overall Architecture

This solution adopts an integrated intelligent architecture of PLC + multi-axis servo + HMI + photoelectric detection. It replaces traditional mechanical linkage with bus synchronous control, and realizes precise multi-axis synchronization of feeding, film running, sealing and cutting through flexible electrical adjustment. With closed-loop control, automatic error correction, abnormal alarm and parameter memory functions, the equipment balances high speed, high precision and wide compatibility.

2.2 Core Process Flow

Manual/auto feeding via sorting line → Conveying and positioning → Photoelectric product detection → Automatic film feeding and wrapping → Vertical heat sealing → Horizontal sealing and cutting → Date coding/inkjet printing → Finished product discharging → Defective product rejection (optional)

2.3 Core Configuration & Hardware Selection

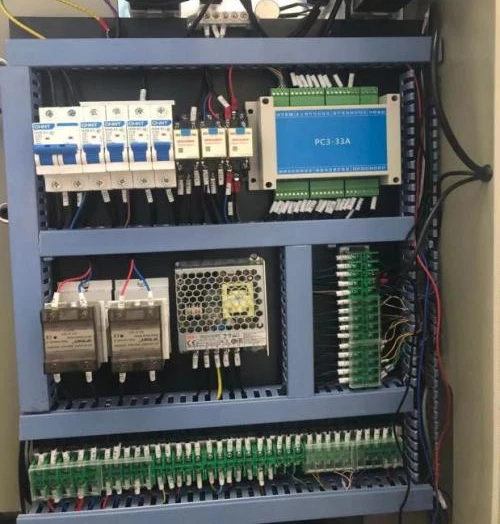

Core Main Control & Servo Power System: Adopts packaging-dedicated PLC matched with three-servo/full-servo closed-loop control system, built with mature horizontal packaging algorithms. The three axes realize independent and precise synchronous control with stepless speed regulation, strong anti-interference performance and high stability. It supports storage of hundreds of product formulas, fundamentally solving common production problems such as film deviation, uneven bag length and cutting offset.

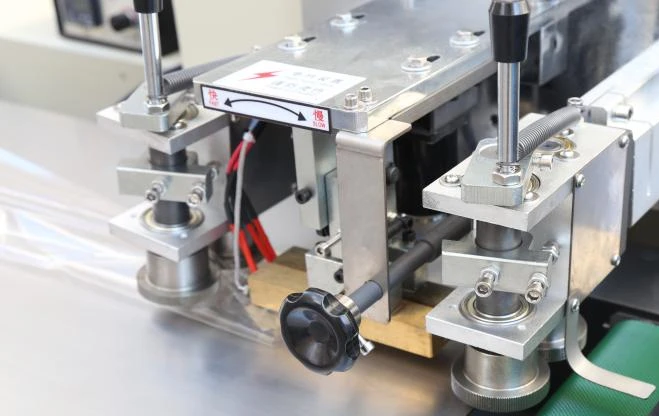

Intelligent Detection & Constant Temperature Sealing System: Equipped with high-sensitivity photoelectric tracking sensors, supporting dual-mode adaptive adjustment of color mark tracking and fixed-length packaging, and automatic deviation correction for various packaging films. Matched with independent zoned intelligent temperature control modules with ±1℃ high precision, it eliminates quality defects such as film scalding, edge scorching, incomplete sealing and wrinkles, ensuring consistent sealing performance and packaging appearance.
Humanized Interaction & Safety Protection Structure: Equipped with a Chinese-English high-definition touch HMI interface, supporting one-click formula calling, visual parameter adjustment, fault self-diagnosis and real-time data display with simple operation. The fully enclosed dust-proof and oil-proof structure with wear-resistant and anti-corrosion core parts adapts to various production scenarios, featuring convenient maintenance and strong safety protection.

3. Key Functional Highlights

Flexible One-Click Model Switching: No mechanical structure adjustment is required. Data such as product specifications, packaging speed, temperature parameters and bag length can be stored as formulas in advance. Product switching can be completed with one click, greatly shortening shutdown time for model change and adapting to flexible production modes of multi-SKU, small-batch and multi-batch production.
Multiple Intelligent Error Prevention Protection: The equipment is built with multiple protection algorithms including empty package prevention, mis-cutting prevention, material jam prevention, film breakage prevention, no-material shutdown, overload protection and high-temperature alarm, eliminating empty packages, product cutting damage and batch defects from the source and greatly reducing the defective rate.
High-Precision and Stable Packaging: Servo bus synchronous control technology ensures high coordination of film running, sealing and cutting actions with minimal bag length error. The sealing edges are flat and uniform, the cutting openings are neat, and the finished packages are highly consistent, effectively improving product appearance grade and sealing performance.
Wide Compatibility for Materials: It is compatible with mainstream packaging films on the market such as OPP, PE, CPP, composite film, pearlescent film and color printing film, and can package regular block, strip and tray-shaped shaped products in food, pharmaceutical, hardware, daily chemical and other industries with strong universality.
Intelligent Operation and Data Traceability: The equipment automatically counts total production output, qualified products and defective products, records real-time operation status and fault information, supports production data retention and traceability, and adapts to the lean production and quality control system of modern factories.
High-Speed Continuous Mass Production Capacity: Optimized servo synchronization logic and mechanical structure ensure stable and jitter-free operation of the equipment. It can run continuously at high speed for a long time with high overall equipment efficiency (OEE), fully meeting the needs of large-scale industrial mass production.

4. Standard Technical Specifications

Parameter Item	Technical Specification
Machine Configuration	3-servo drive configuration
Maximum Film Width	350mm
Bag Making Length	50–400mm (customizable)
Packaging Width	25–150mm
Packaging Height	5–45mm
Packaging Speed	120–180 packs per minute
Applicable Film Thickness	0.03–0.06mm
Applicable Packaging Materials	OPP heat-sealing film, composite film, coated paper, aluminum foil film, aluminum-plastic composite film
Sealing Strength	Vertical & horizontal sealing strength ＞15N/mm
Power Supply & Total Power	220V, 50Hz, total power 2.4Kw
Machine Dimension (L×W×H)	4100×1000×1600mm
Machine Net Weight	650KG

Additional equipment parameters: Supports dual-mode free switching of fixed-length packaging and color mark tracking packaging, with ±1℃ zoned independent constant temperature control accuracy. Equipped with Chinese and English bilingual touch interface, supporting formula storage, parameter locking and permission management. It has multiple safety protection functions including empty

5. Solution Value & ROI Analysis

5.1 Production Efficiency Value

The equipment can replace 2-3 workers, eliminate manual capacity fluctuation, realize automatic and stable continuous production, effectively improve shift output, ensure efficient order delivery, and greatly reduce labor and management costs.

5.2 Product Quality Value

With precise servo control and intelligent constant-temperature sealing technology, the equipment effectively avoids quality defects such as wrinkled seals, air leakage, uneven bag length and product damage. Uniform packaging appearance and stable sealing performance reduce rework and customer complaints, improving product market competitiveness.

5.2 Cost & ROI

The equipment achieves cost reduction and efficiency improvement by saving labor, reducing material waste, lowering defective loss and increasing production capacity. It can realize quick investment return under multi-shift production and create long-term economic benefits, serving as core equipment for production line automatic upgrading.

6. Conclusion

This full-servo automatic horizontal packaging solution accurately meets the mass production packaging needs of multiple industries and effectively solves industry pain points of traditional packaging, including low efficiency, poor quality, slow model switching, high maintenance cost and difficult data traceability. Integrated with core technologies such as servo synchronous control, intelligent error prevention, precise temperature control and data traceability, the equipment has outstanding advantages of high-speed stability, high yield rate, flexible adaptation, simple operation and low maintenance cost. The implementation of this solution enables enterprises to realize full-process automatic upgrading of packaging procedures, significantly reduce costs and improve efficiency, enhance packaging quality and production standardization level. It adapts to both flexible production of small-batch and multi-variety orders and large-scale mass production, providing reliable equipment and technical support for enterprise automatic and lean production upgrading.
