Overall Solution for High-speed Folding & Packaging Machine for Bath Towels

This solution provides an all-in-one fully automatic high-speed bath towel folding and packaging solution. Adopting precise servo control, modular folding structure and intelligent sensor detection technology, it realizes full-process automatic operations including automatic flattening, high-speed folding, precise stacking, automatic bagging, sealing, date coding and finished product discharging to completely replace manual work. Centering on five core objectives of capacity improvement, quality stabilization, cost reduction, strong adaptability and easy maintenance, the solution is applicable to full-category towels such as civilian bath towels, hotel disposable towels and thick pure cotton towels for factory mass production scenarios.

1. Project Background & Pain Point Analysis

At present, the post-production folding and packaging processes in bath towel manufacturing, washing and outsourcing, and hotel linen centralized procurement industries mostly rely on manual labor or semi-automatic equipment. Core problems such as production capacity bottlenecks, poor standardization, high labor costs and unstable quality control restrict large-scale, standardized and high-efficiency mass production.

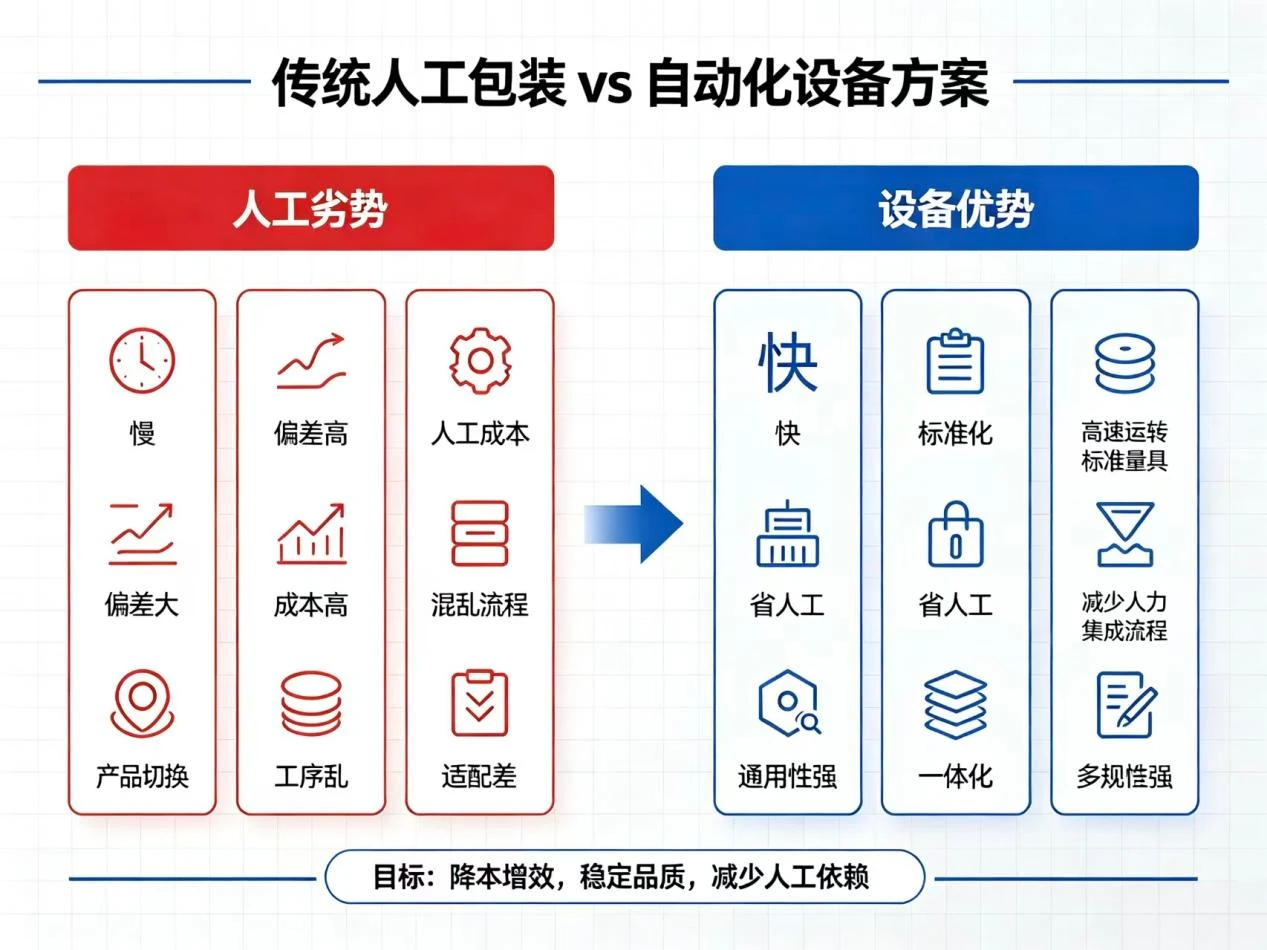

Existing core industry pain points are listed as follows:

Low Production Efficiency: Manual folding and packaging is slow with limited daily output per worker. Severe capacity shortages occur during peak orders, failing to match the throughput of upstream weaving and washing lines and causing production bottlenecks. Conventional semi-automatic equipment only supports small and medium-batch production and cannot achieve high-speed mass production.
Lack of Standardization: Manual folding leads to inconsistent dimensions, messy wrinkles and uneven packaging tightness, resulting in irregular finished products with high return and defect rates, which cannot meet the unified quality standards of brand clients, high-end hotels and e-commerce bulk procurement.
High Labor Cost: Folding and packaging is repetitive and high-intensity work with difficult recruitment and high staff turnover. Long-term labor, management and training costs keep rising and squeeze corporate profit margins.
Fragmented & Cumbersome Processes: The traditional model requires multiple manual procedures including sorting, folding, counting, bagging, sealing and coding. Disconnected processes lead to low efficiency and frequent problems such as missing packages, counting errors and incomplete sealing.
Poor Adaptability: Ordinary equipment cannot adapt to bath towels of different weights, sizes and thicknesses. Thick towels are prone to wrinkles while thin towels are easy to stretch and deform during folding, resulting in low equipment versatility.

2. Overall Structure & Process Flow

2.1 Equipment Overall Structure

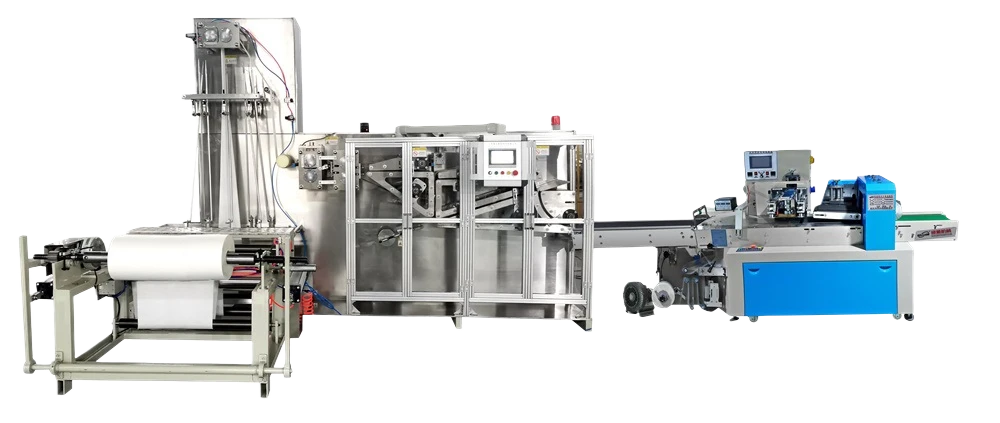

The whole equipment adopts a modular split structure, consisting of eight core modules: automatic feeding & flattening module, servo high-speed folding module, precise counting & stacking module, automatic film feeding & bagging module, heat sealing & cutting module, intelligent coding module, finished product conveying & discharging module, and PLC intelligent control system. Featuring compact structure and reasonable layout, the equipment can operate independently or link with upstream production lines and supports non-standard customized debugging.

2.2 Full-automatic Process Flow

Manual feeding / assembly line automatic feeding → automatic deviation correction & flattening → intelligent sensor positioning → precise servo folding (adjustable multi-folding modes) → quantitative stacking & sorting → automatic film bag making / bagging → heat pressure sealing → date & batch coding → finished product cutting & separation → automatic discharging & counting → defective product detection & rejection. The whole process requires no manual intervention with seamless procedure connection.

3. Core Functions & Technical Advantages

3.1 High-speed & Stable Mass Production with Doubled Efficiency

Equipped with a multi-servo synchronous driving system, the equipment abandons the traditional low-speed cylinder transmission structure and realizes high-speed linkage and precise synchronization of folding, flattening and sealing actions to avoid stuttering and idling. With a standard packaging speed of 40–80 bags/min and 24-hour continuous operation support, the equipment achieves extremely high operating rate with monthly maintenance downtime ≤ 2 hours. Breaking the capacity bottlenecks of manual and semi-automatic equipment, it perfectly adapts to large-scale mass production of disposable bath towels, eliminates back-end packaging bottlenecks and greatly improves the overall production and delivery efficiency.

3.2 Full-range Adaptive Folding & Multi-product Precise Adaptability

Customized for non-woven disposable bath towels, the equipment is equipped with adjustable pressure rollers and precision folding blades to avoid wrinkling and tensile deformation. It supports a wide material adaptation range, with unfolded non-woven size of 300–1600mm(L)×250–800mm(W) and folded size of 150–400mm(L)×100–200mm(W). The packaging size is adjustable from 300×200×50mm (max) to 150×100×10mm (min). With switchable folding modes and over 98% product consistency, it fully adapts to hotel disposable towels, thick cotton towels and e-commerce standard bath towels.

3.3 Intelligent Integrated Control with Low Failure Rate & Easy Maintenance

Adopting PLC touch screen intelligent control system, the equipment supports one-click visual adjustment of folding size, operating speed, sealing temperature, coding and stacking parameters. Equipped with high-precision photoelectric sensors, it realizes real-time deviation correction and defect inspection with a qualified rate ≥99%. The highly integrated design completes flattening, folding, counting, bag making, sealing, coding and discharging in one machine, replacing multiple manual stations. The rust-proof and wear-resistant carbon steel & stainless steel frame adapts to harsh workshop environments. Modular detachable structure, overload protection, fault alarm and no-material stop functions ensure safe and stable operation with simple daily maintenance, effectively reducing factory management and operation costs.

4. Core Technical Parameters (Standard Model)

Parameter Item	Standard Specification
Equipment Name	Full-automatic High-speed Disposable Bath Towel Folding & Packaging Machine
Equipment Model	HY-2000
Packaging Speed	40-80 bags/min
Maximum Packaging Size	L300mm × W200mm × H50mm
Minimum Packaging Size	L150mm × W100mm × H10mm
Non-woven Fabric Unfolded Size Range	Length 300-1600mm, Width 250-800mm
Non-woven Fabric Folded Size Range	Length 150-400mm, Width 100-200mm
Power Specification	AC380V，50Hz
Rated Power	8KW
Maximum Feeding Width / Maximum Raw Material Diameter	800mm / 1000mm
Machine Weight	2000Kg
Machine Dimension	L7.1m × W2.75m × H2.56m
Qualified Rate	≥99%
Control System	PLC + touch screen intelligent control system, precise servo drive
Packaging Mode	Automatic bag making/bagging, 4-side seal / 3-side seal (customizable)
Additional Functions	Automatic coding, counting, defective rejection, data statistics
Operating Noise	≤75dB, compliant with workshop environmental standards

5. Implementation Advantages & Benefit Analysis

5.1 Economic Benefits

The equipment can replace 4–6 workers, greatly reducing labor costs including salaries, social insurance and management fees, with an investment payback period of 1–2 years. Meanwhile, the stable qualified rate reduces material loss and rework costs. The high-speed capacity supports larger batch orders and improves corporate order acceptance capability and revenue space.

5.2 Quality Benefits

Full mechanical standardized operation completely solves manual defects such as dimensional deviation, messy appearance and incomplete sealing. Uniform, beautiful and neat finished packaging greatly improves product grade and brand competitiveness, reduces customer return and complaint rates, and meets the quality requirements of high-end brands and large-scale procurement clients.

5.3 Capacity Benefits

Breaking the upper limit of manual production capacity, it realizes 24-hour non-stop mass production with 3–5 times higher capacity than the traditional manual mode. It completely eliminates production line bottlenecks, realizes front and rear-end capacity matching, greatly improves overall production efficiency and delivery capability, and easily copes with capacity pressure during order peak periods.

5.4 Management Benefits

Automated equipment replaces manual labor and reduces management costs caused by personnel management, training and turnover. The standardized and digitalized production process enables traceable capacity and quality data, facilitating refined production management and improving workshop automation and intelligence level.

6. Applicable Scenarios & Customization Services

This solution is applicable to various scenarios including bath towel manufacturing factories, washing factories, hotel linen suppliers, e-commerce home textile supply chains and disposable daily necessities factories. It supports personalized non-standard customization. Exclusive folding programs, packaging specifications and equipment layout can be customized according to product dimensions, packaging styles, workshop space and capacity requirements. It can also connect with upstream weaving, drying and flattening lines to realize full-process automatic linked production.

7. Project Implementation & After-sales Guarantee

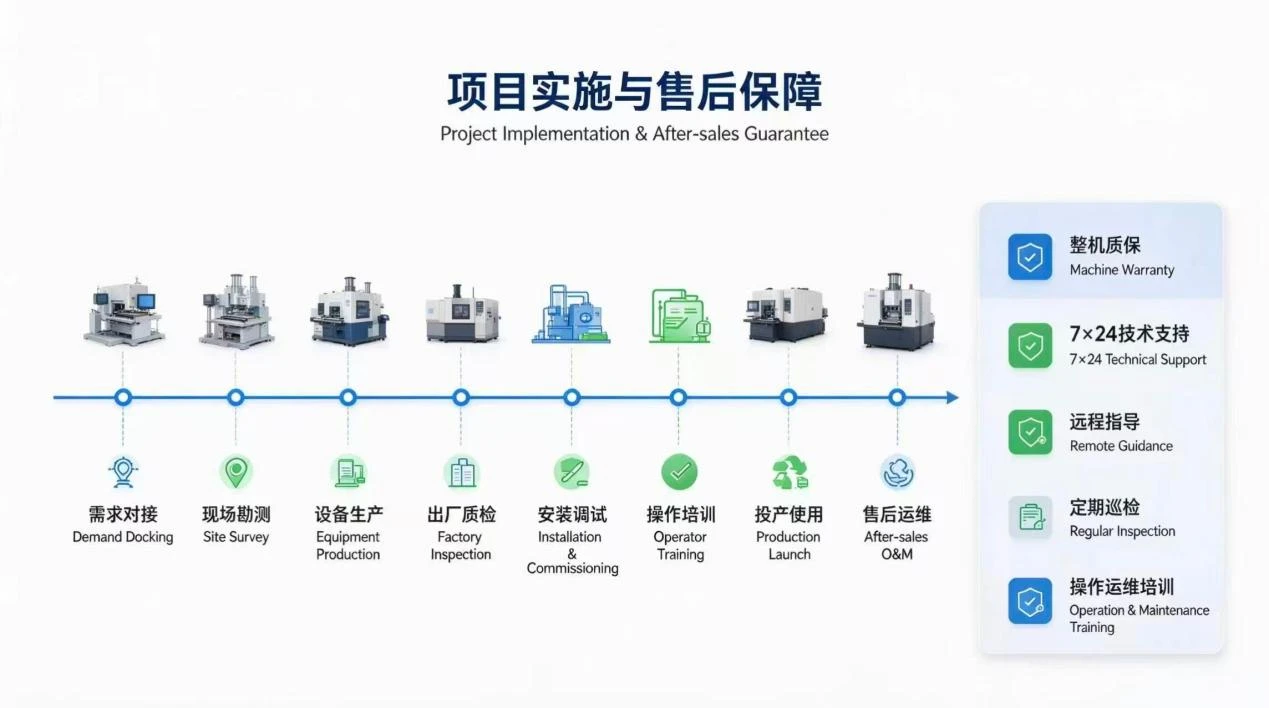

7.1 Implementation Process

Demand docking → on-site survey & solution customization → equipment production & commissioning → factory inspection → on-site installation & deployment → equipment debugging → operator training → production launch → after-sales operation and maintenance. One-on-one whole-process follow-up ensures rapid equipment implementation and stable production.

7.2 After-sales Guarantee

We provide complete machine warranty and long-term warranty for core electrical components. 7×24-hour technical consultation is available with rapid fault response and remote troubleshooting guidance. Regular on-site inspection, maintenance and firmware upgrade are provided, together with free operation and maintenance technical training to ensure long-term stable and efficient equipment operation.

8. Solution Summary

Targeting the core industry pain points of low manual packaging efficiency, unstable quality and high costs, this high-speed bath towel folding and packaging machine solution focuses on automation, high speed, standardization and intelligence. It realizes full automatic upgrading of bath towel post-production folding and packaging processes through modular precision equipment and mature technological procedures. With wide adaptability, high efficiency, stable quality and convenient maintenance, the solution helps enterprises reduce costs, improve efficiency, upgrade production modes and enhance market competitiveness rapidly, serving as the optimal implementation solution for large-scale and intelligent production in the home textile and daily necessities industries.
